Fabtech 11-13 Ford F450/550 4WD 10 Lug 6in Radius Arm System w/DL 4.0 Coilovers & Rear DL Shocks

FabTech
SKU:
K2158DL
$7,009.31
(No reviews yet)
Shipping:
Free Shipping
Current Stock:

Out of stock

Out of Stock

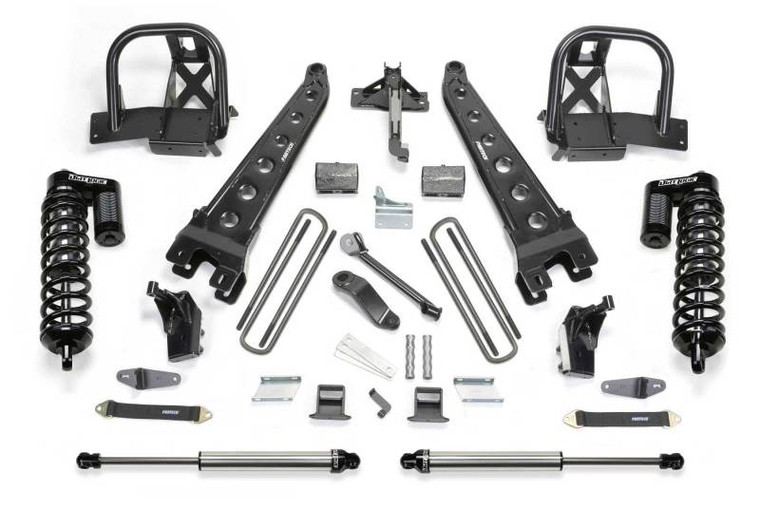

Obtain maximum front suspension damping for Super Duty's with our Dirt Logic 4.0 Stainless Steel Coilover Conversion system. The upper coilover mounts are constructed with 1.75 diameter DOM tubing that replaces the factory coil spring mounts and span across a wide section of the frame for proper impact load distribution. The lower mounts are 1/4'' thick steel that attach to the axle housing, providing solid mounting points for the Dirt Logic 4.0 Stainless Steel Coilover piggyback reservoir shocks. Also included in this system are billet sway bar end links with heim ends and quad layer limiting straps. Includes rear 2.25 Dirt Logic Stainless Steel shocks. 6in. RAD ARM SYS W/DLSS 4.0 C/O/ RR DLSS 2011-13 FORD F450/550 4WD 10 LUG F450: TIRE SIZE - 285/75R18 WHEEL - 18XOEM W/OEM" BS W/OEM DUALLY WHEELS; F550: TIRE SIZE - 285/75R19.5 WHEEL - 19.5XOEM W/OEM" BS W/OEM DUALLY WHEELS; 101. SOME MODELS MAY NOT SIT LEVEL AFTER INSTALL.
