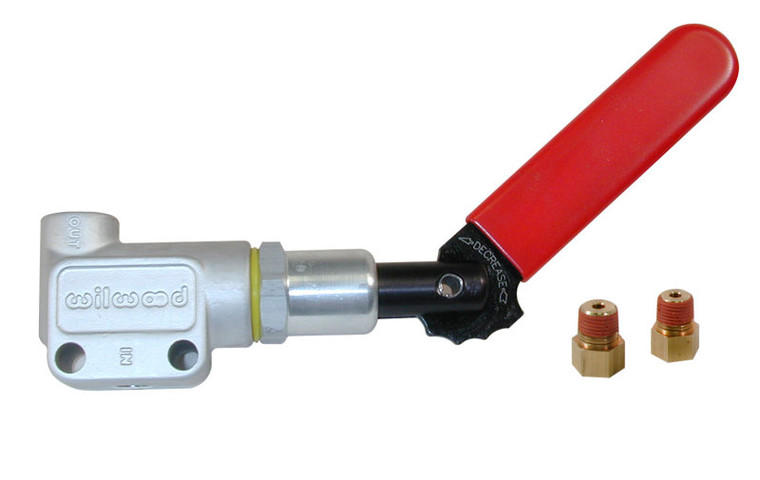

Wilwood Proportioning Valve - Lever Adjust

Wilwood
SKU:
260-8420
|
UPC:
889545067941
$96.18
$103.88
(You save $7.70 )
(No reviews yet)
Width:
5.70 (in)
Height:
1.40 (in)
Depth:
8.00 (in)
Current Stock:
3
Adding to cart… The item has been added
The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 100-1000 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. This proportioning valve has six preset points actuated by moving a lever allowing racers to quickly adjust brake bias during a race. The lever "clicks" into the six positions for positive adjustment. Valves weigh only 6.1 ounces (lever), and have two .25" side mounting holes spaced 1.00" apart. Inlet / outlet ports are 1/8-27 NPT.
