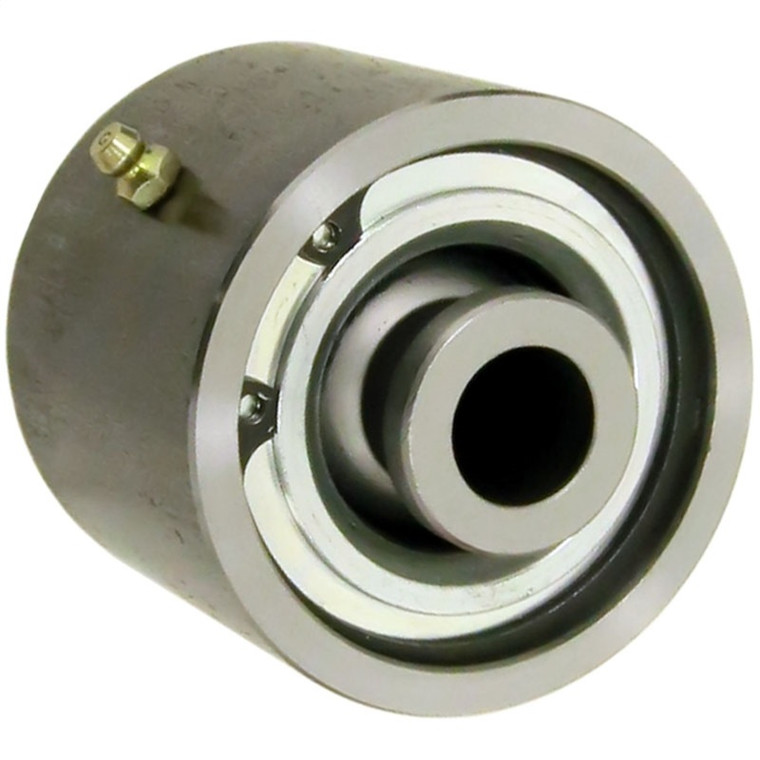

RockJocks weld-on chromoly Johnny Joints(R) for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint(R) rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, chromoly side washers and a snap ring. The outer shell is weldable .180 in. wall machined?chromoly tubing?that is fitted with a zerk fitting for greasing. This specific joint is a 3 in. o.d. and features a 3.250 in. mounting width and a .750 in. thru bolt hole.
Johnny Joint? Rod End; 3 in.; 3.250 In. Mounting Width; Externally Greased; w/o Bolt; 3/4 in. Thru Bolt Hole; Each;
