RockJock Johnny Joint Rod End 2in Narrow Forged 1.850in X .562in Ball 3/4in-16 RH Thread Shank
Sale

RockJock Johnny Joint Rod End 2in Narrow Forged 1.850in X .562in Ball 3/4in-16 RH Thread Shank

RockJock
SKU:
CE-9112N75-22
|
UPC:
810038151137
$66.00 $59.40
(No reviews yet)
Width:
4.00 (in)
Height:
4.00 (in)
Depth:
4.00 (in)
Current Stock:

Out of stock

Out of Stock
Description

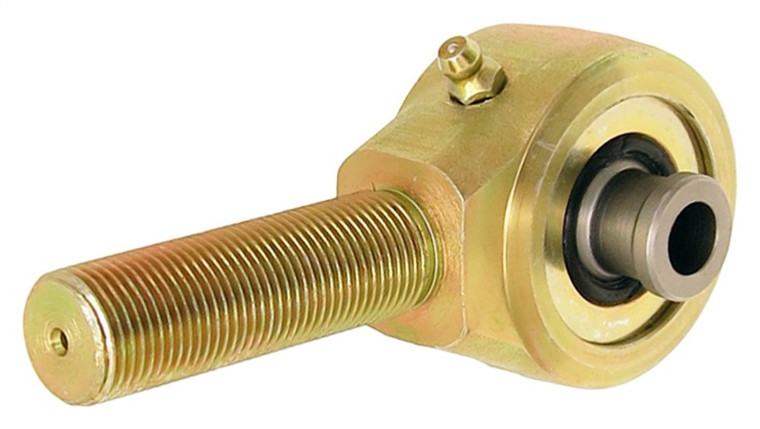

RockJocks narrow forged Johnny Joints(R) for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint(R) rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 3/4 in.-16 right hand threads on the shank, and a 1.850 in. mounting width ball with a .562 in. thru bolt hole. Finished in gold zinc plating. Narrow Forged Johnny Joint?; 2 in.; 1.850 in. x 0.562 in. Ball; 3/4 in.-16 RH Threaded Shank; Externally Greased; Each;
