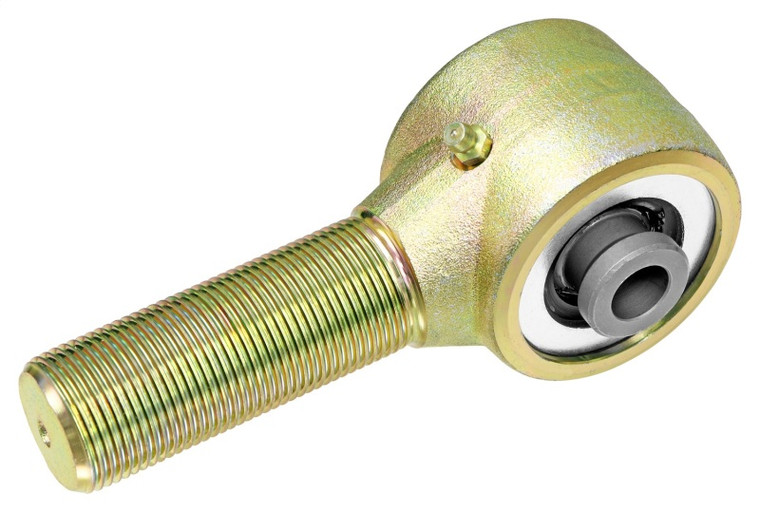

RockJock Johnny Joint Rod End 2 1/2in Forged 2.440in x .570in Ball 1 1/4in-12 RH Thread Shank
Sale

RockJock Johnny Joint Rod End 2 1/2in Forged 2.440in x .570in Ball 1 1/4in-12 RH Thread Shank

RockJock
SKU:
CE-9114-16
|
UPC:
810038151984
$66.00 $59.40
$66.00
(You save $6.60 )
(No reviews yet)
Width:
4.30 (in)
Height:
4.00 (in)
Depth:
6.10 (in)
Current Stock:

Out of stock

Out of Stock
Description
RockJock's forged Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 1/2 in. diameter, fitted with a zerk fitting for greasing, 2.3 in. of 1 1/4 in.-12 right hand threads on the shank, and a 2.440 in. mounting width ball with a .570 in. thru bolt hole. Finished in gold zinc plating. Johnny Joint? Rod End; 2 1/2 in.; Forged; 2.440 in. x .570 in. Ball; 1 1/4 in. 12 RH Threaded Shank; Externally Greased;
