RockJock Johnny Joint 2 1/2in Forged 2.365in X .562in Offset Ball 1 1/4in-12 RH Thread Shank
Sale

RockJock Johnny Joint 2 1/2in Forged 2.365in X .562in Offset Ball 1 1/4in-12 RH Thread Shank

RockJock
SKU:
CE-9114N-14
|
UPC:
810038152349
$66.00 $59.40
$66.00
(You save $6.60 )
(No reviews yet)
Width:
4.20 (in)
Height:
4.00 (in)
Depth:
6.00 (in)
Current Stock:
1
Adding to cart… The item has been added
Description

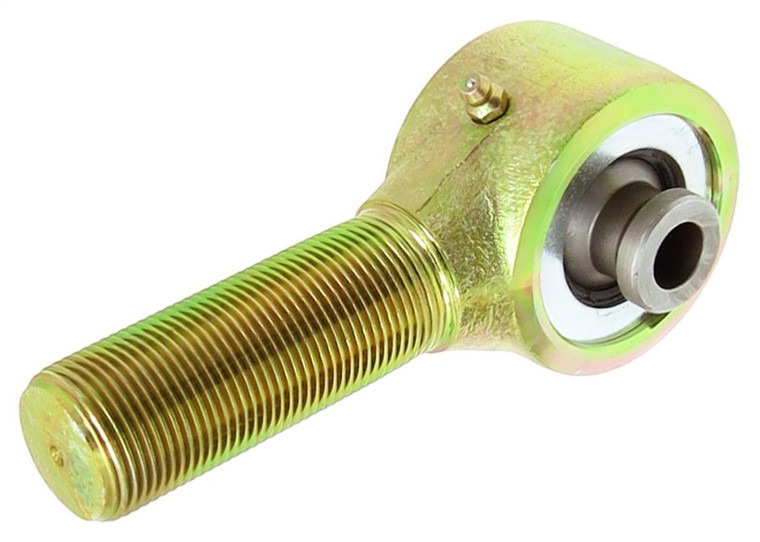

RockJocks forged narrow Johnny Joints(R) for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint(R) rod ends offer cushioning that a heim joint cannot provide via a high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 1/2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 1 1/4 in.-12 right hand threads on the shank, and a 2.365 in. mounting width offset ball with a .562 in. thru bolt hole. Finished in gold zinc plating. Narrow Forged Johnny Joint?; 2.5 in. Forged Joint; w/1 1/4 in. Right Hand Threaded Stud; .562 in. X 2.365 in. Offset Ball;
