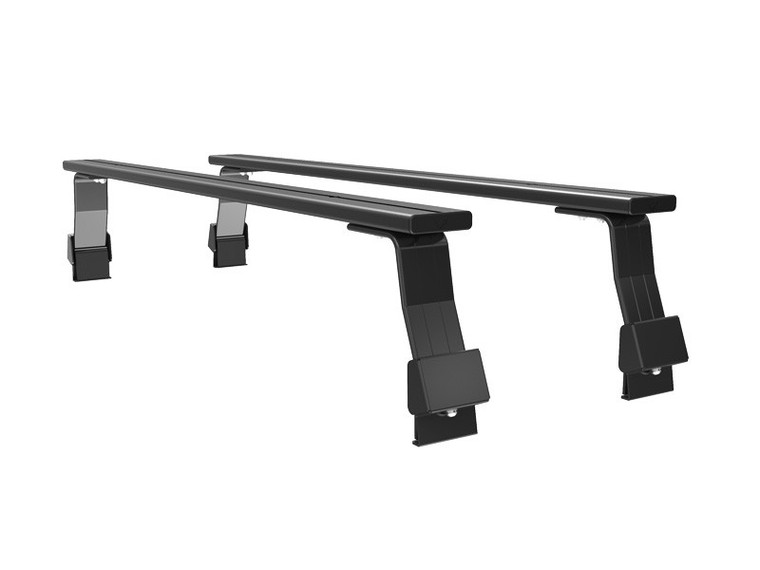

KRMS003 - Mahindra Scorpio Load Bar Kit / Gutter Mount - by Front Runner Consisting of:2 x LASS105 - No 5 Leg 190mm (Pair) - by Front Runner 1 x LBSK016 - Roof Load Bar Pair 1425mm(W) - by Front Runner 1 x WDLB001 - Load Bar Wind Deflector / 10mm - by Front Runner Material used:Black epoxy powder-coated T6 aluminium 3CR12 Stainless SteelApproximate Installed Weight 8kg (17lbs)The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.To determine the approximate height from your vehicles roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8'') to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8'') to the height of the Legs listed above to determine the height of the rack from your vehicles rain gutters.If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8'') to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.Shipping Dimensions:Width120mm (5)Length1545mm (61)Height 175mm (7)Shipping Weight:Weight8.9kg (19.7lbs)
