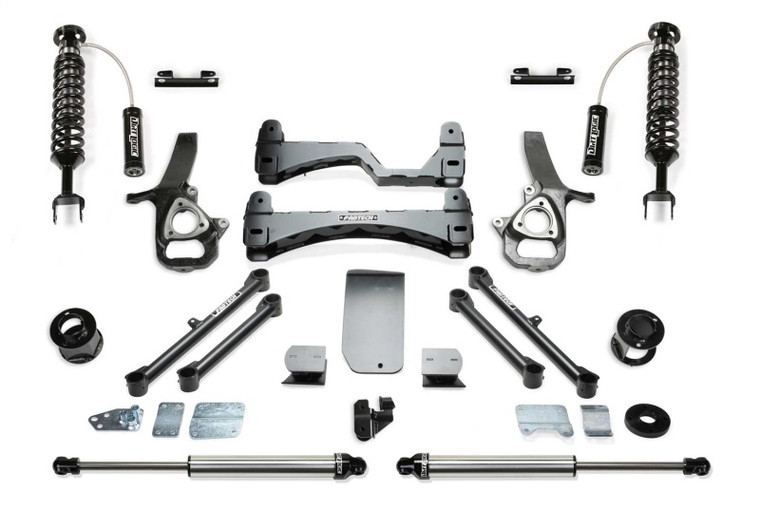

Fabtech 19-20 Ram 1500 4WD 6in Perf. System w/DL 2.5 Resi Coilovers & Rear DL Shocks

This system is a great choice for Ram 1500 owners looking to keep that stock ride yet want big tires and wheels. The factory suspension is relocated with heavy duty bolt on bracketry that will provide years of trouble free service. The system features Fabtech?s proven IFS technology with extended length ductile iron steering knuckles for proper factory electronic stability control functionality. Heavy duty 1/4" thick steel lower control arm crossmembers provide superior ground clearance while the integrated front differential skid plate adds protection to the drivetrain. Rear lift is accomplished with steel coil spring spacers that utilize the factory coil springs for stock load carrying capacity with a great highway ride. The Performance system includes Fabtech?s legendary stainless steel Dirt Logic 2.5 Coilover shocks for outstanding damping capacity with a superior highway ride. Rear shocks include the Dirt Logic 2.25. FEATURES: 1/4" thick steel lower control arm crossmembers are arched for maximum ground clearance. Four adjustable alignment cams provide a wide range of adjustment. The fully welded box design of these crossmembers provides additional strength to the front suspension. Extended length ductile iron steering knuckles retain near stock track width keeping the tires under the fenders. These steering knuckles are designed to work in conjunction with the factory ESC for proper functionality at all speeds. Constructed of a stainless steel body and NitroSteel? piston rod these 6" lift Coilovers are the finest quality on the market. They feature aluminum remote reservoirs to help dissipate heat and reduce shock fade. Extensive ride work was performed to ensure a superior ride on and offroad. Outstanding damping for offroad. A heavy duty front differential skid plate is constructed of 1/4" thick steel to protect the diff from offroad obstacles. Integrated differential mounts on the crossmembers properly reposition the front diff for the precise CV an TIRE SIZE - 35/12.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 37/12.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; 14. CAN NOT USE OEM WHEEL AND TIRE.; 130. WILL NOT FIT FACTORY AIR SUSPENSION.; 196. MUST USE AFTERMARKET 20" WHEELS OR LARGER.; 200. DOES NOT FIT REBEL MODELS; 201. DOES NOT FIT VEHICLES EQUIPPED WITH OEM 22" WHEEL & HEAVY DUTY BEARING OPTION; 203. DOES NOT FIT 2019 RAM 1500 CLASSIC MODELS Fitment: 2019 Ram 1500 Big Horn 2019 Ram 1500 Laramie 2019 Ram 1500 Laramie Longhorn 2019 Ram 1500 Limited 2019 Ram 1500 Lone Star 2019 Ram 1500 Rebel 2019 Ram 1500 Tradesman 2020 Ram 1500 Big Horn 2020 Ram 1500 Laramie 2020 Ram 1500 Laramie Longhorn 2020 Ram 1500 Limited 2020 Ram 1500 Lone Star 2020 Ram 1500 Rebel 2020 Ram 1500 Tradesman 2021 Ram 1500 Big Horn 2021 Ram 1500 Laramie 2021 Ram 1500 Limited 2021 Ram 1500 Lone Star 2021 Ram 1500 Rebel 2021 Ram 1500 Special Service 2021 Ram 1500 Tradesman 2021 Ram 1500 TRX
